Adsorption Dryer

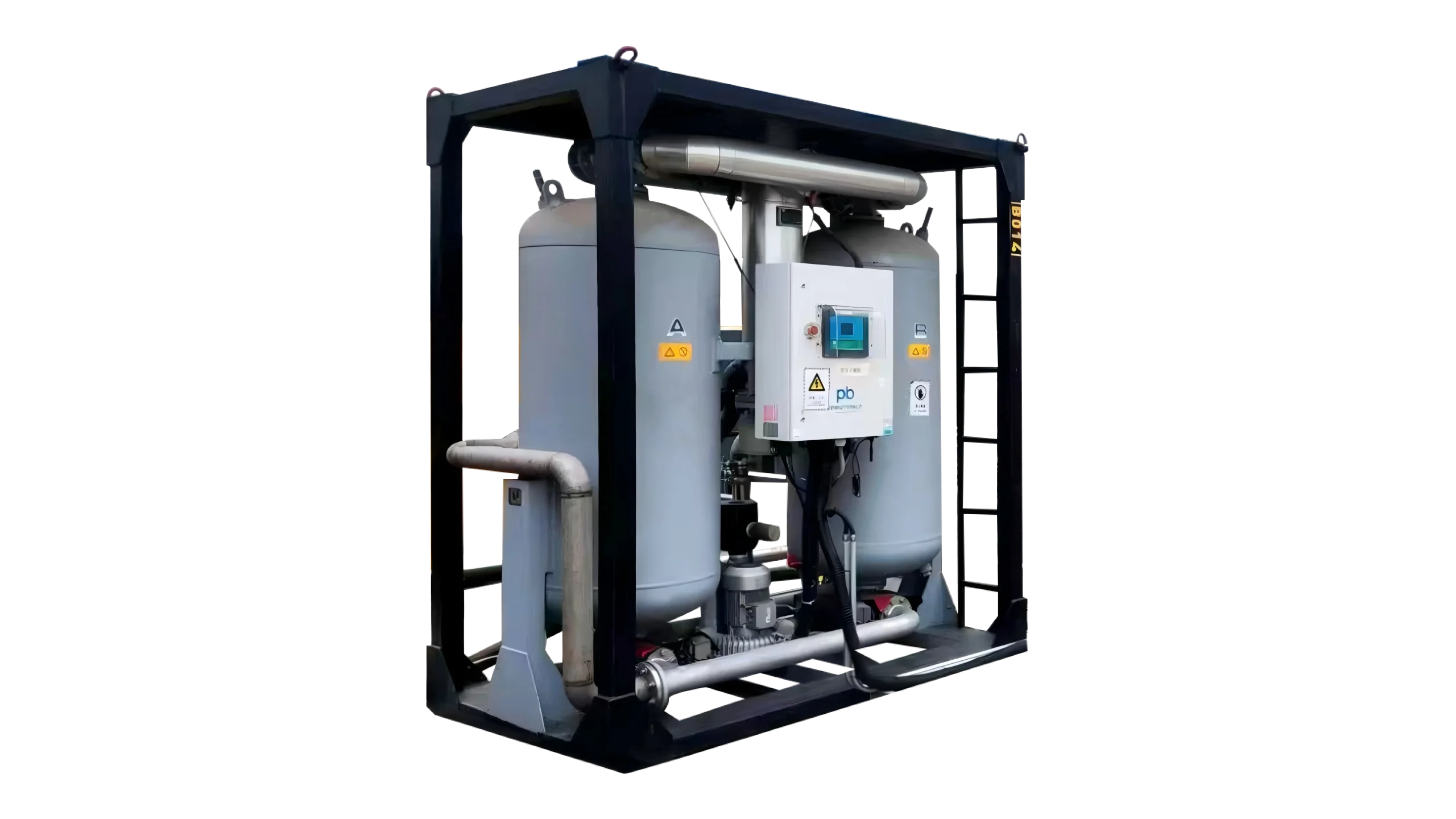

FOOENS Oil-Free Dryer Units feature Pneumatech or EastX brand cores, 100% oil-free design, integrated container protective framework for outdoor operation, with dew points as low as -40/-70℃. They are designed to handle compressed air treatment needs from 10 to 50m³/min and cover three models: PH, PE, and PB, suitable for different power and electrical source scenarios.
| Model | PH Range | PE Range | PB Range |
|---|---|---|---|
| General | |||
| Dimensions (L × W × H, mm) | 2,400×1,400×2,700 | 2,400×1,400×2,700 | 2,400×1,400×2,700 |
| Mass* (kg) | 3,500 | 3,800 | 4,000 |
| Air Outlet (in) | G3 | G3 | G3 |
| Installed Motor | |||
| Nominal Power (kW) | 0.02 | 27 | 36 |
| Power Supply (V/Ph/Hz) | 220 / 2 / 50 | 380 / 3 / 50 | 380 / 3 / 50 |
| Performance | |||
| Compressible Gas | Compressed Air | Compressed Air | Compressed Air |
| Max. Capacity FAD (m³/min) | 10–50 | 10–50 | 10–50 |
| Working Pressure (bar(e)) | >6 | >6 | >6 |
| Dew Point (℃) | -40 / -70 | -40 / -70 | -40 / -70 |
1. Dryer is Pneumatech or EastX brand.
2. *Container frame inclusive
Features
- Top industry brands to choose from: Pneumatech, Atlas Copco, Domnick Hunter
- Different drying methods: Heatless adsorption, slight heat adsorption, blower heat adsorption, refrigerated
- Meets different dew point requirements: 2-5°C, -20°C, -40°C, -70°C (pressure dew point)
- Meets different filtration precision: 0.1μm, 0.01μm
Advantages
- Quality assurance exceeding customer usage standards to ensure product quality
- Meeting the high-quality requirements of clients across various industries: electronics, air separation, automotive, food, pharmaceuticals, chemicals…
- Maximize protection of the customer’s CDA system against oil, dust, and moisture contamination
