Client Requirements

• 1 PTS916 diesel-driven oil-free compressor as backup, air-cooled, mobile, no rain shelter allowed
• 9 ZT250 electric oil-free compressors for continuous 24/7 outdoor use, required noise level < 60dB
• Air quality standard: Dew point ≤ -70°C, filtration precision 0.01μm

Solution

• Backup system: 1 × PTS916 diesel compressor + 1 × PHS1600 adsorption dryer + quick-connect hoses

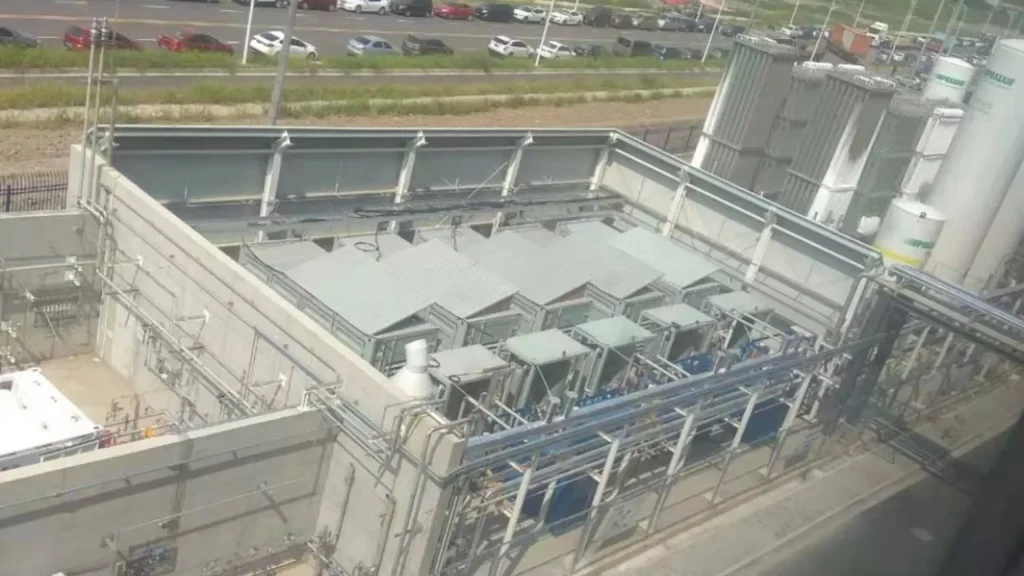

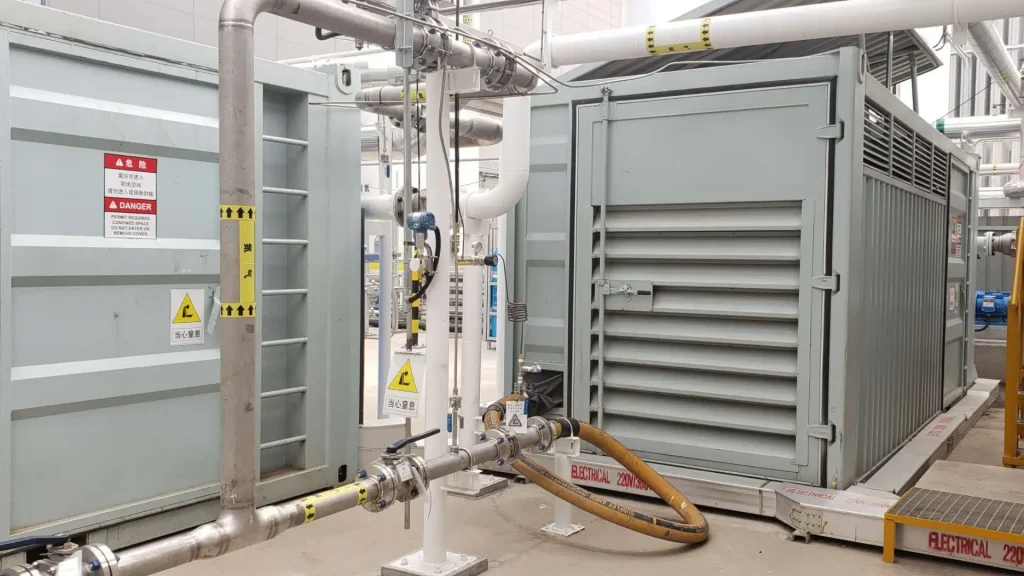

• Main supply system: 9 × ZT250 containerized compressors + 9 × PE1690 heatless adsorption dryers + quick-connect hoses
• 1 on-site service engineer deployed for full-time equipment monitoring and maintenance

Key Advantages

• PTS916 serves as backup, capable of autonomous operation without power or water; auto-starts when system pressure drops
• ZT250 units operate in parallel, allowing modular adjustment to air demand and ensuring operational redundancy
• Minimal impact from single-unit failure, ideal for critical industrial air supply systems
• PE1690 dryers use energy-saving design, significantly reducing air and energy consumption
• System maintains stable pressure with ultra-clean air quality, meeting stringent purity standards
