EA Range - Electric Driven Oil-Free Air Compressors
Electric Driven Oil-Free Compressor

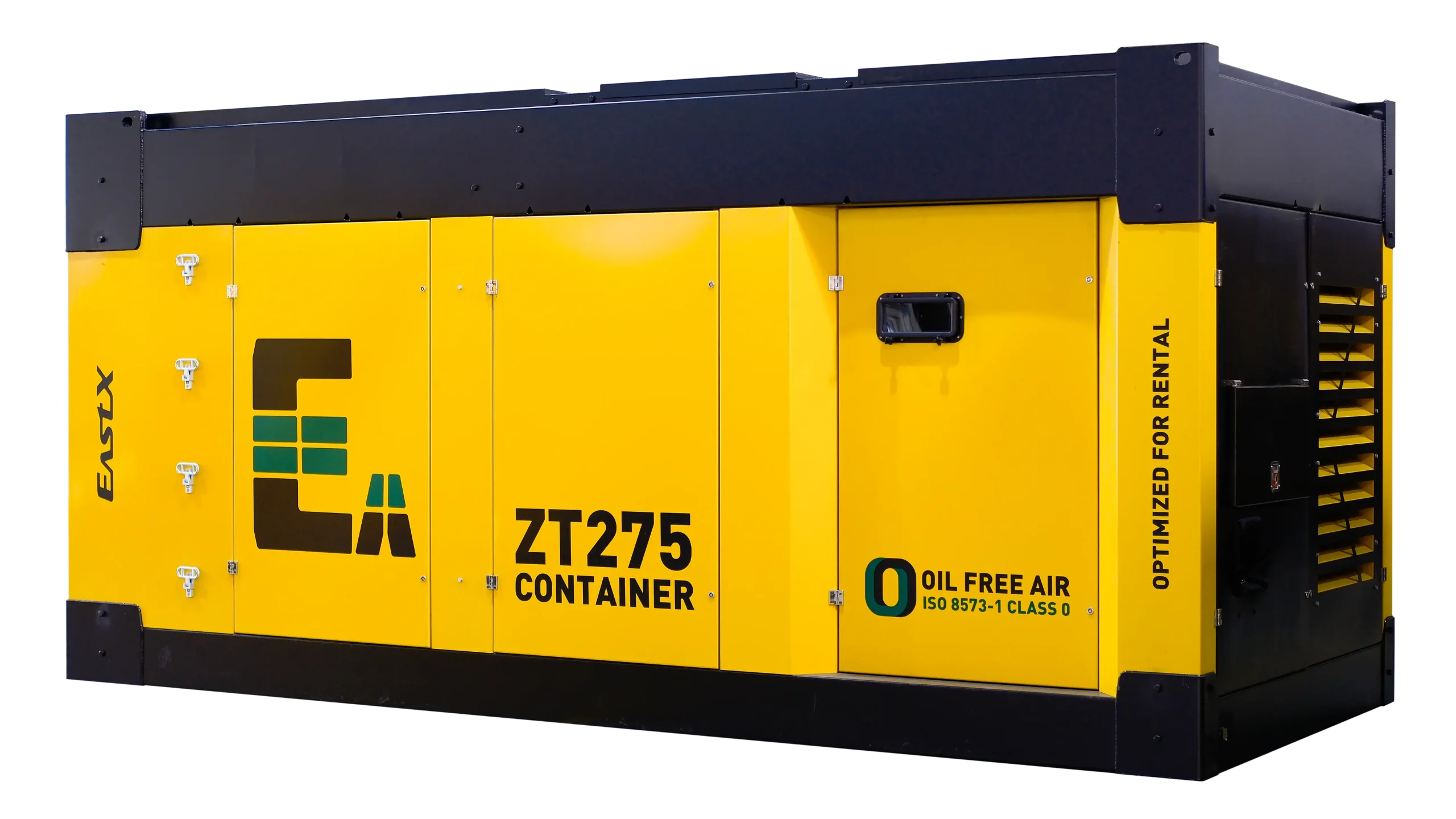

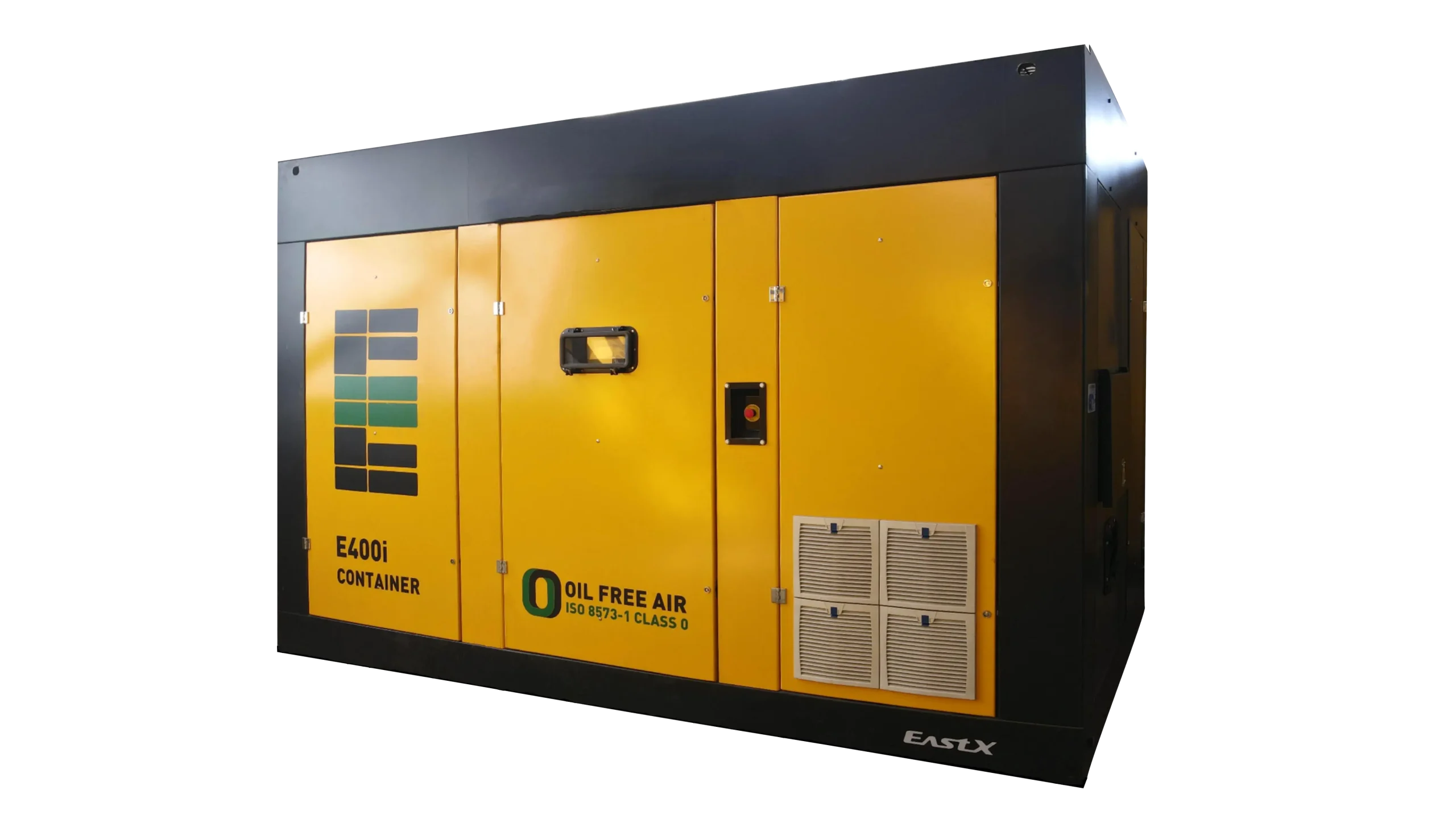

The unit's performance complies with ISO1217 Ed.3 Annex C standards. It features electric-driven air cooling (EA) technology, with the core compressor head from Atlas Copco or Ingersoll Rand, and an integrated container-style frame for easy transport and deployment.
| Model | EA55 | EA90 | EA132 | EA250 | EA400 |
|---|---|---|---|---|---|
| General Parameters | |||||
| Dimensions L×W×H (mm) | 3,300×1,650×2,450 | 3,300×1,650×2,450 | 4,000×2,300×2,650 | 4,000×2,300×2,650 | 4,000×2,300×2,650 |
| Weight* (kg) | 3,500 | 3,700 | 5,900 | 7,500 | 9,800 |
| Air Outlet(in) | G2 | G2 | G3 | G3 | G3 |
| Installed Motor | |||||
| Rated Power (kW) | 55 | 90 | 132 | 250 | 400 |
| Power Supply (V/Ph/Hz) | 380/3/50 | 380/3/50 | 380/3/50 | 380/3/50 | 380/3/50 |
| Performance Parameters | |||||
| Compression Stages | 2 | 2 | 2 | 2 | 2 |
| Max Displacement Flow (m³/min) | 7.2 | 12.5 | 18.4 | 36.3 | 56 |
| Max Working Pressure (bar(e)) | 10 | 10 | 10 | 10 | 10 |
1. Unit perfomance measured according to ISO1217,Ed3,Annex C
2. “Ea” means electric driven and air cooling. Compressor main head is Atlas Copco or Ingersoll Rand brand.
3. *Container frame inclusive
Features
- Supports operation in extreme environments such as sandstorms and cotton fluff, adaptable to a wide temperature range of -20°C to 50°C.
- Anti-collision body + dual-layer protection (dustproof/rustproof).
- Oil-free lubrication design to reduce mechanical friction.
- Standardized casing structure, supporting outdoor deployment.
Advantages
- Stable operation in harsh environments, reducing failure rates and extending equipment lifespan
- Anti-collision design minimizes transport damage; dual-layer protection resists environmental corrosion
- Container-free design eliminates the need for a machine room, enabling rapid deployment and saving space and installation time
- Real-time equipment monitoring and remote fault alerts help reduce downtime
