EA Range - Electric Driven Oil-Free Air Compressors
Electric Driven Oil-Free Compressor
The unit’s performance complies with ISO1217 Ed.3 Annex C standards. It features electric-driven air cooling (EA) technology, with the core compressor head from Atlas Copco or Ingersoll Rand, and an integrated container-style frame for easy transport and deployment.
| Model | EA55 | EA90 | EA132 | EA250 | EA400 |
|---|---|---|---|---|---|
| General Parameters | |||||
| Dimensions L×W×H (mm) | 3,300×1,650×2,450 | 3,300×1,650×2,450 | 4,000×2,300×2,650 | 4,000×2,300×2,650 | 4,000×2,300×2,650 |
| Weight* (kg) | 3,500 | 3,700 | 5,900 | 7,500 | 9,800 |
| Air Outlet(in) | G2 | G2 | G3 | G3 | G3 |
| Installed Motor | |||||
| Rated Power (kW) | 55 | 90 | 132 | 250 | 400 |
| Power Supply (V/Ph/Hz) | 380 / 3 / 50 | 380 / 3 / 50 | 380 / 3 / 50 | 380 / 3 / 50 | 380 / 3 / 50 |
| Performance Parameters | |||||
| Compression Stages | 2 | 2 | 2 | 2 | 2 |
| Max Displacement Flow (m³/min) | 7.2 | 12.5 | 18.4 | 36.3 | 56 |
| Max Working Pressure (bar(e)) | 10 | 10 | 10 | 10 | 10 |
1. Unit perfomance measured according to ISO1217,Ed3,Annex C
2. “EA” means electric driven and air cooling. Compressor main head is Atlas Copco or Ingersoll Rand brand.
3. *Container frame inclusive
Features
- Advanced Oil-free Lubrication Design：Complies with ISO8573-1:2010 Class 0 standards, ensuring 100% oil-free air output and reducing mechanical friction.
- Robust Environmental Adaptability：Operates reliably in extreme conditions (e.g., sandstorms, pollen) and adapts to a wide temperature range (-20°C to 50°C). Standardized enclosure structure enables direct outdoor open-air deployment.
- Durable Structural Design：Anti-collision body and dual-layer protection (dust/rust resistance) enhance equipment integrity in harsh environments.
- High Efficiency & Smart Management：Optimized airflow and energy efficiency with real-time monitoring and remote fault alerts for proactive maintenance.
Advantages
- High Reliability & Extended Lifespan：Stable operation in harsh environments reduces failure rates and prolongs equipment service life.
- Cost & Resource Savings：Oil-free design minimizes maintenance needs; container-free structure saves space and installation time; energy-saving technology lowers operational costs.

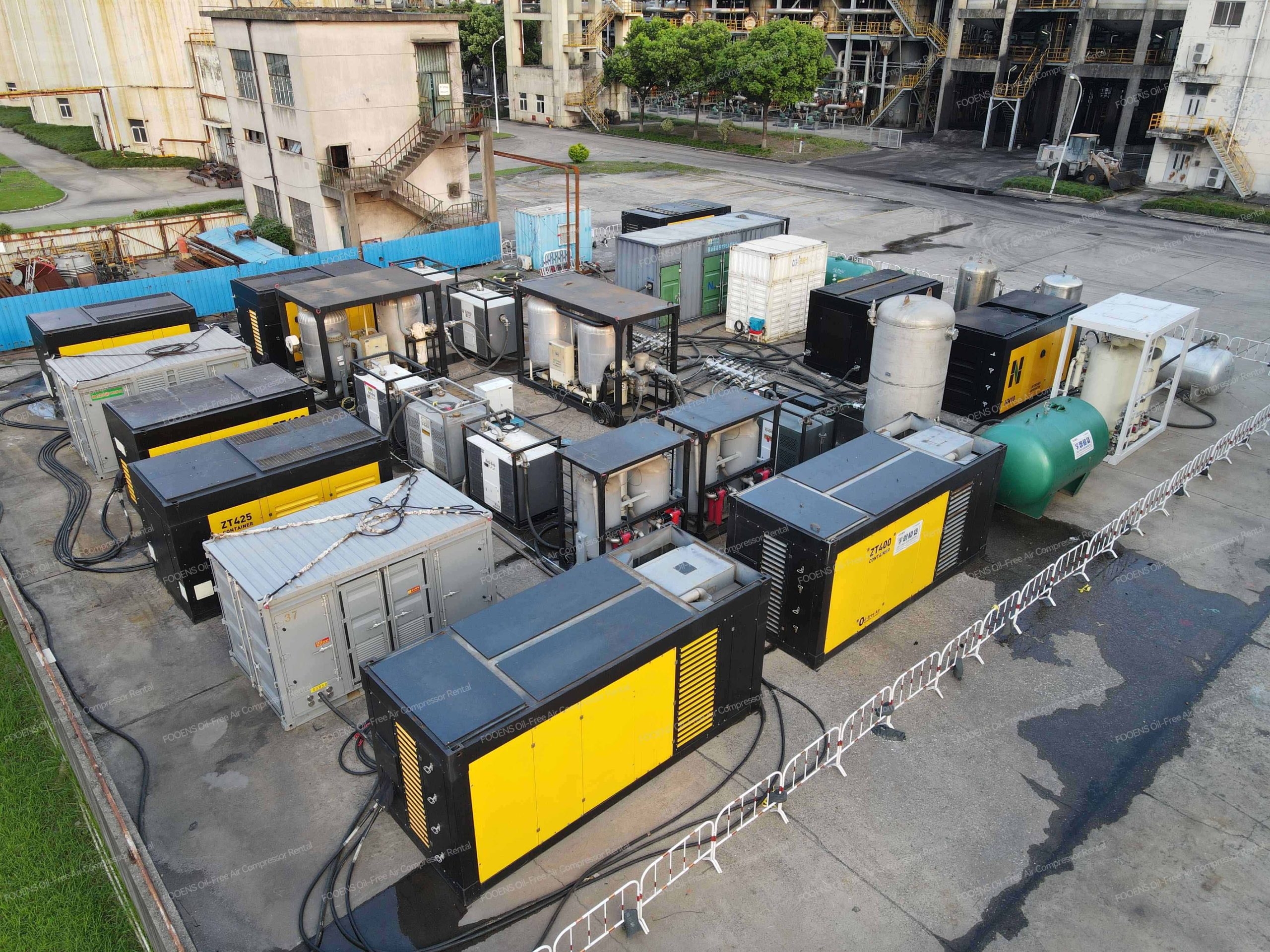

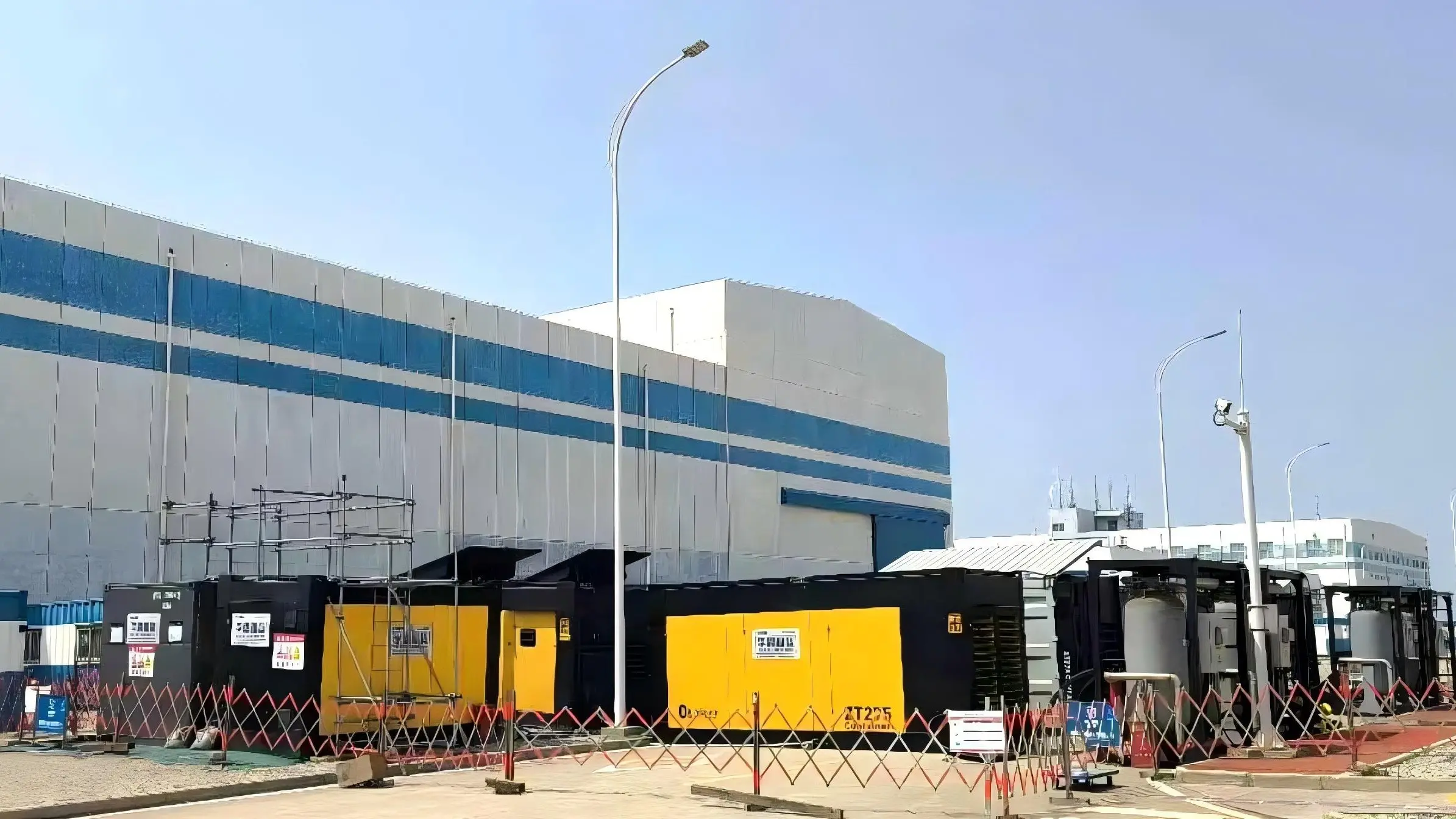

- Flexible Deployment & Easy Maintenance：Standardized enclosure supports rapid outdoor installation, reduces reliance on dedicated rooms, and improves deployment efficiency.
- Intelligent Operation：Real-time monitoring and remote alerts minimize unplanned downtime, ensuring continuous production.
