In the operation of oil-free compressor rental systems, the outlet flexible connector, as a critical transition component for compressed air transmission, is often subjected to high temperature, high pressure, and vibration. These working conditions make it one of the most vulnerable parts of the system. This article, based on FOOENS RENTAL experience in oil-free compressor rental services, systematically reviews the failure manifestations, root causes, and response recommendations related to outlet flexible connector rupture and resulting air leakage, providing technical guidance for relevant personnel.

I. Typical Scenario Assumption

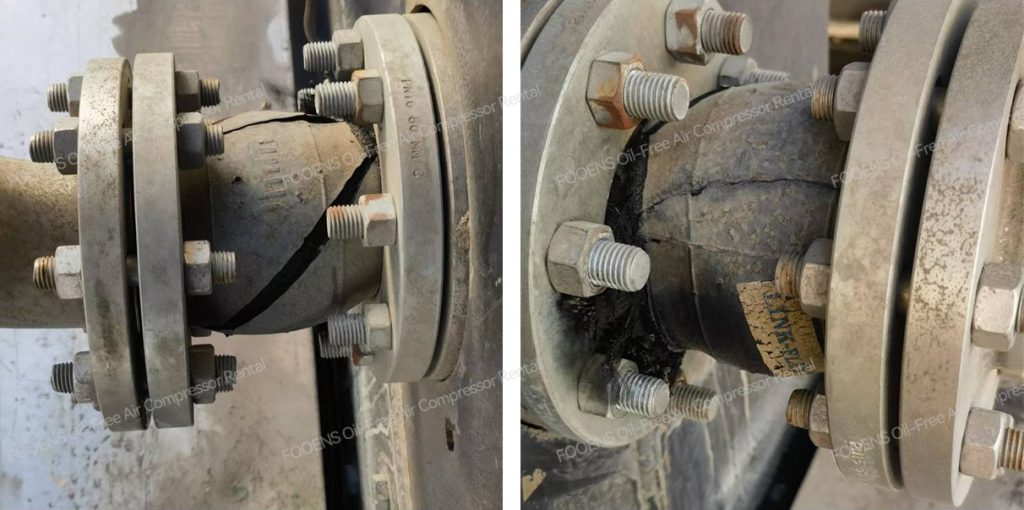

During a scheduled maintenance period, an industrial enterprise used its own oil-free compressor rental equipment to temporarily supplement compressed air. After a period of operation, site personnel noticed an abnormal drop in supply pressure, and some process pipelines experienced insufficient air supply. Upon inspection, the cause was confirmed as a rupture of the compressor outlet flexible connector, resulting in massive air leakage and severe efficiency loss.

Such scenarios are common in industrial settings, especially when system maintenance experience is lacking or component selection is improper, increasing the likelihood of cascading failures. For enterprises using FOOENS RENTAL compressors, these risks are mitigated through professional support and standardized practices.

II. Failure Manifestations and Potential Hazards

Air leakage caused by flexible connector rupture typically presents as:

1. Abnormal vibration or unusual noise at the compressor outlet pipe section.
2. Frequent fluctuations of system terminal pressure and insufficient air supply.
3. High-speed air jets at the leakage point, accompanied by heat and significant noise.
4. Increased start-stop frequency of the compressor, load fluctuations, and rising energy consumption.

If not addressed promptly, such failures may compromise supply stability, cause downstream equipment shutdowns, localized overheating, or even lead to safety hazards such as personnel burns.

III. Root Cause Analysis

Drawing on FOOENS RENTAL service cases and maintenance data from oil-free compressor rental projects, the main causes of outlet flexible connector rupture include:

1. Improper selection: Materials and structure of the connector fail to account for temperature, pressure, and pulsation characteristics of compressed air, leading to insufficient fatigue life.
2. Incorrect installation: Axial or radial misalignment during installation subjects the connector to uneven forces, accelerating fatigue.
3. System vibration: Loose compressor or piping supports increase vibration frequency, raising rupture risk.
4. Environmental stress and aging: High humidity, heavy dust, metal corrosion, and rubber aging accelerate wear if components are not replaced in time.

These issues often remain hidden within the system, yet are frequent culprits of unplanned shutdowns.

IV. Response Recommendations

1. Optimize component selection

• Use pressure-resistant corrugated metal hoses with stainless steel mesh reinforcement to withstand high-temperature and pulsating conditions.
• Choose parts meeting or exceeding OEM standards, avoiding incompatible generic alternatives.

2. Standardize installation practices

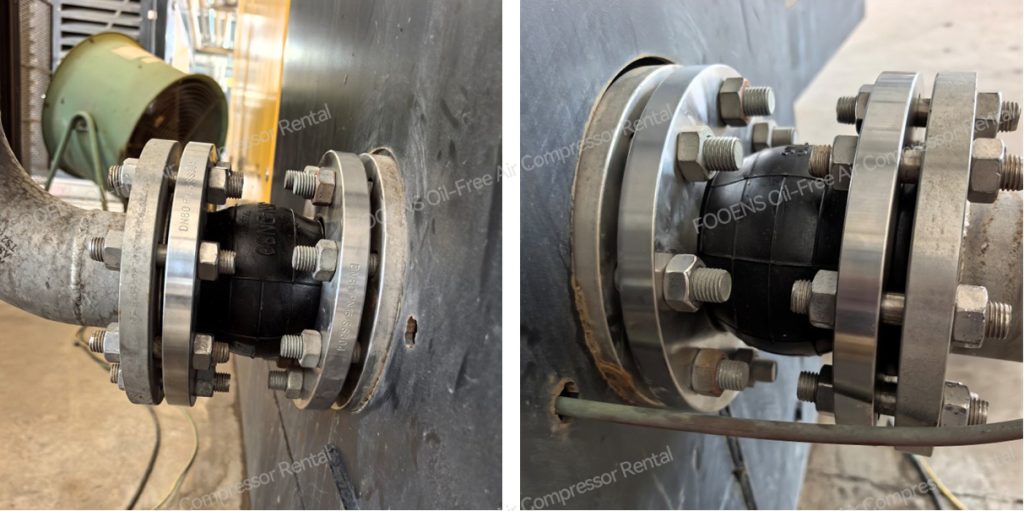

• Ensure outlet flanges are aligned, with no stretching or twisting of flexible connectors.
• Add anti-vibration supports and cushioning pads to reduce operating stress.

3. Strengthen inspection and maintenance

• Include flexible connectors as priority inspection items and assess their condition based on operating hours.
• For rental projects exceeding three months, incorporate connector replacement into mid-term maintenance plans.

4. Introduce online monitoring

• Install outlet pressure and flow monitoring modules to detect leakage trends early through data analysis.

5. Adopt oil-free compressor rental services

• For temporary, seasonal, or high-reliability air demand, prioritize FOOENS RENTAL services with engineering support.
• FOOENS RENTAL ensures equipment, component adaptation, and emergency response are fully integrated.
• FOOENS RENTAL oil-free compressor rental solutions cover not only equipment, but also component adaptation, risk assessment, and emergency response. With integrated remote monitoring, real-time operating data can be uploaded, enabling early-warning alarms.

V. FOOENS’ Systematic Risk Management Approach

Although a flexible connector is a secondary component, it plays a pivotal role in system stability. Particularly in temporary rental scenarios where clients may lack full knowledge of system design and operation, reliance on professional service providers is critical. Using FOOENS RENTAL solutions, clients gain access to standardized, modular, and transparent service options.

FOOENS RENTAL adheres to full-chain control in its oil-free compressor rental practices—from equipment selection, accessory configuration, and installation, to commissioning and remote monitoring. By strengthening system reliability and maintainability, FOOENS RENTAL builds a resilient air supply assurance system through accident prevention, rapid response mechanisms, and strong technical reserves.
